Brembo GP4-RX Front Brake Caliper Kit – 220B01010 – 108 mm
Brembo GP4-RX Front Brake Caliper Kit – 220B01010 – 108 mm
At a glance
- Position / quantity: Front / left and right calipers
- Mounting: Radial, 108 mm mounting centers
- Pads: Included
The Brembo GP4-RX combines a machined-aluminum body with a bright nickel finish and red lettering. Four 32 mm pistons per caliper and a reinforced two-piece structure form the core of its design. This 108 mm kit is the version to assess for compatible radial-mount forks; it is distinct from the 100 mm and 130 mm GP4-RX kits.
Part number: 220B01010. Supplied as one front left-and-right caliper kit. The listed price is for the pair. The selected finish is nickel with red Brembo branding.
Design and equipment
The nickel surface and equal-diameter pistons are characteristic of this GP4-RX specification. Brake pads are included. Both the mounting specification and the supplied caliper configuration are shown in the model-specific technical drawing below. Use that drawing when planning the installation or comparing this kit with another Brembo part number.
Technical specifications
| Brand / model | Brembo GP4-RX |
|---|---|
| Manufacturer part number | 220B01010 |
| Position / quantity | Front / left and right calipers |
| Mounting | Radial, 108 mm mounting centers |
| Body | CNC-machined billet aluminum, two-piece |
| Pistons per caliper | 4 × 32 mm, aluminum |
| Finish | Nickel plated / red logo |
| Pads | Included |
Selected applications
The model-year examples below are drawn from PLOT's listing for this exact part number. This is a selected application list, not a complete vehicle catalogue.
| Motorcycle | Model years |
|---|---|
| Honda CBR1000RR | 2006–2013 |
| Honda CBR1000RR SP | 2014–2016 |
| Kawasaki ZX-6R | 2003–2006 |
| Suzuki GSX-R600 | 2004–2018 |
| Suzuki GSX-R1000 | 2009–2016 |
| Yamaha YZF-R6 | 2005–2020 |
| Triumph Daytona 675 | 2006–2010 |
PLOT specifies additional offset spacers and mounting bolts for the applications listed below. These installation parts must be selected for the exact motorcycle and disc configuration.
Installation planning
PLOT recommends a 19 mm Brembo radial master cylinder for this kit; have the installer assess the complete hydraulic setup. Verify disc diameter, disc offset, wheel clearance, hose routing, fittings, bolt length and any ABS-specific requirements. Fork conversions and other modifications can change compatibility even when the motorcycle appears in the application list.
Have a qualified motorcycle technician confirm the specification and carry out installation, bleeding and functional checks. Do not assume that mounting adapters, hoses or vehicle-specific hardware are included; plan these separately against the supplied kit documentation.

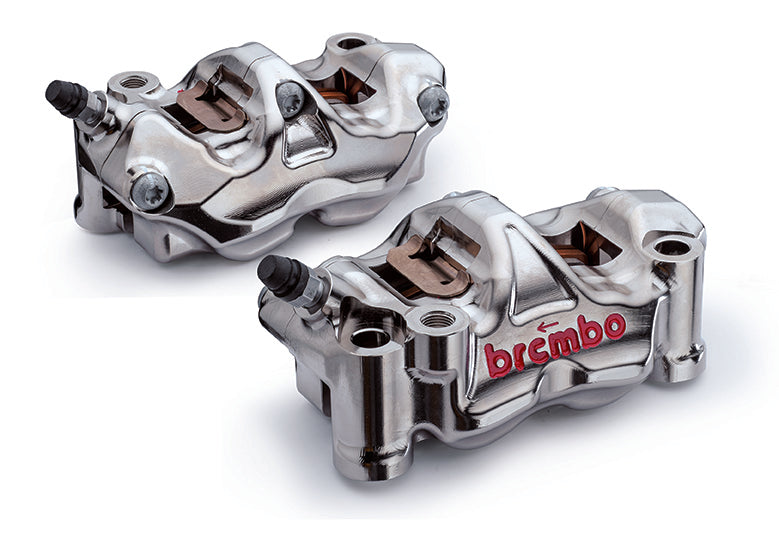

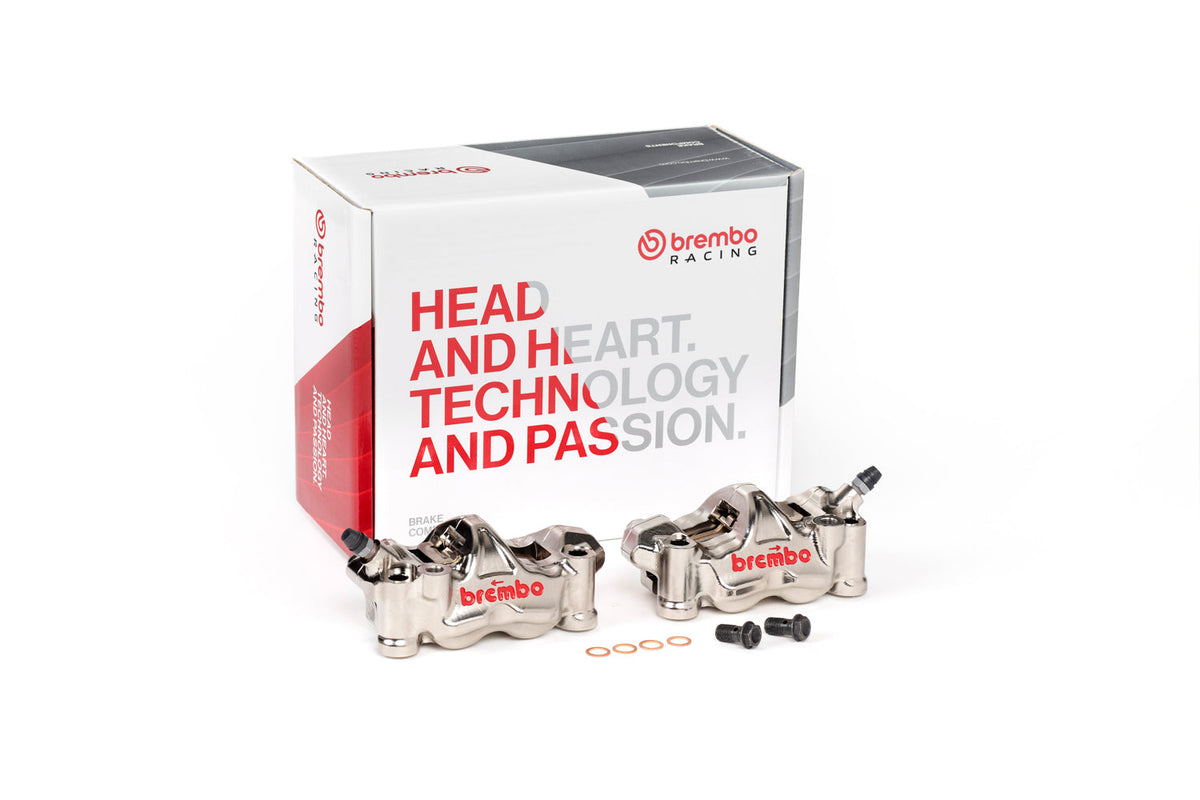

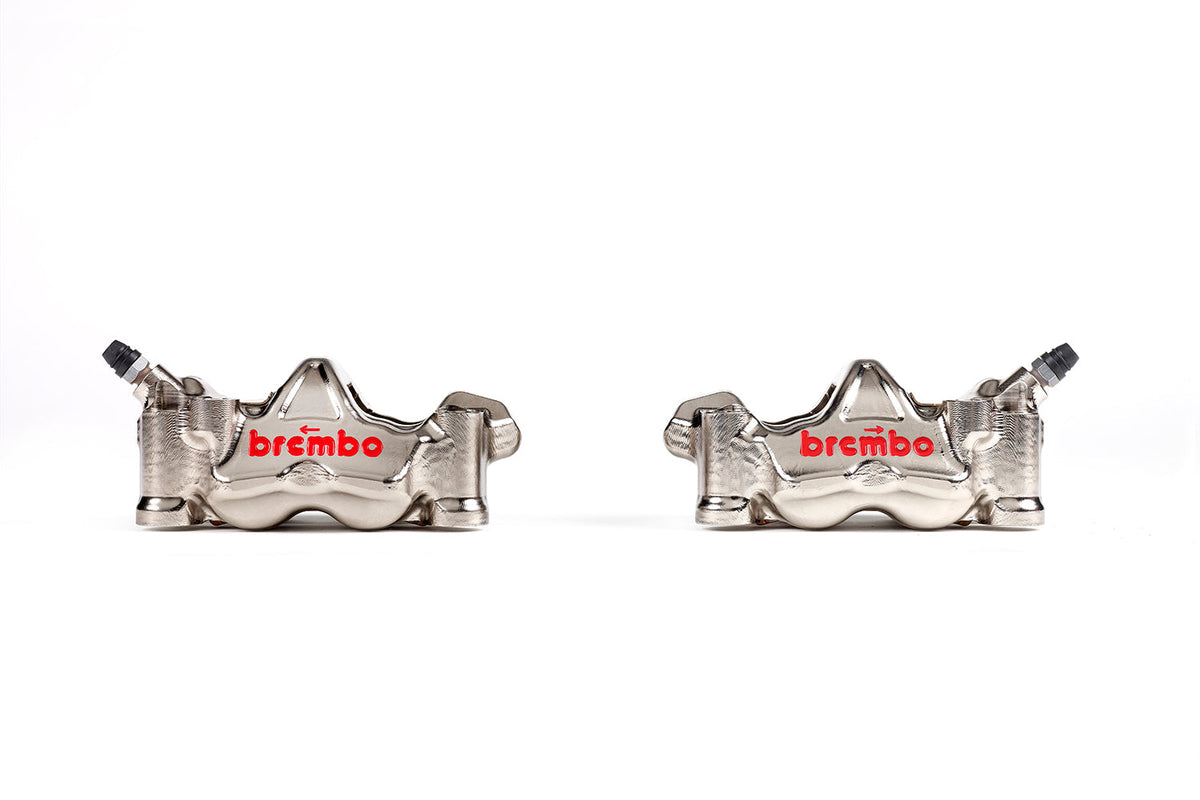

Product views

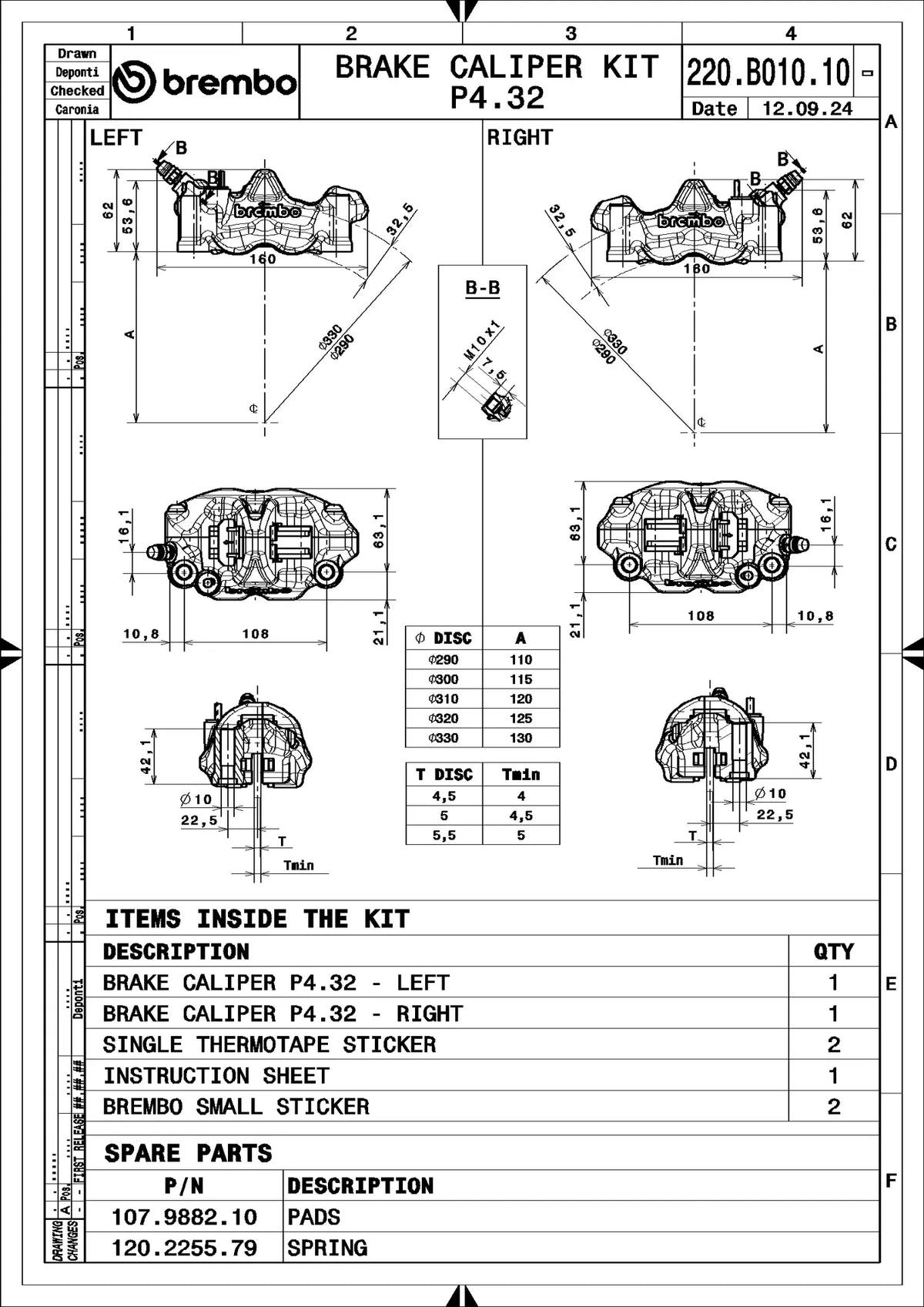

Technical drawing — 220B01010
