Brembo GP4-RX Front Brake Caliper Kit – 220B01020 – 100 mm
Brembo GP4-RX Front Brake Caliper Kit – 220B01020 – 100 mm
At a glance
- Position / quantity: Front / left and right calipers
- Mounting: Radial, 100 mm mounting centers
- Pads: Included
This GP4-RX kit brings Brembo's machined-aluminum, nickel-finished caliper design to 100 mm radial-mount applications. Each caliper uses four 32 mm pistons and a reinforced two-piece body. The silver-toned finish and red Brembo lettering make the machining visible, while the matched left-and-right configuration supports a coordinated front brake installation.
Part number: 220B01020. Supplied as one front left-and-right caliper kit. The listed price is for the pair. The selected finish is nickel with red Brembo branding.
Design and equipment
The nickel surface and equal-diameter pistons are characteristic of this GP4-RX specification. Brake pads are included. Both the mounting specification and the supplied caliper configuration are shown in the model-specific technical drawing below. Use that drawing when planning the installation or comparing this kit with another Brembo part number.
Technical specifications
| Brand / model | Brembo GP4-RX |
|---|---|
| Manufacturer part number | 220B01020 |
| Position / quantity | Front / left and right calipers |
| Mounting | Radial, 100 mm mounting centers |
| Body | CNC-machined billet aluminum, two-piece |
| Pistons per caliper | 4 × 32 mm, aluminum |
| Finish | Nickel plated / red logo |
| Pads | Included |
Selected applications
The model-year examples below are drawn from PLOT's listing for this exact part number. This is a selected application list, not a complete vehicle catalogue.
| Motorcycle | Model years |
|---|---|
| Aprilia RS660 | 2020–2021 |
| Aprilia RSV1000R | 2004–2008 |
| Ducati 749 — radial-caliper versions | 2003–2006 |
| Ducati Monster 696 | 2008–2010 |
| KTM 1290 Superduke R | 2014–2021 |
| KTM 950 Supermoto | 2005–2008 |
| Triumph Daytona 675 R | 2011–2012 |
Match the exact model, year and brake configuration before ordering; mounting-center spacing alone does not establish fitment.
Installation planning
PLOT recommends a 19 mm Brembo radial master cylinder for this kit; have the installer assess the complete hydraulic setup. Verify disc diameter, disc offset, wheel clearance, hose routing, fittings, bolt length and any ABS-specific requirements. Fork conversions and other modifications can change compatibility even when the motorcycle appears in the application list.
Have a qualified motorcycle technician confirm the specification and carry out installation, bleeding and functional checks. Do not assume that mounting adapters, hoses or vehicle-specific hardware are included; plan these separately against the supplied kit documentation.

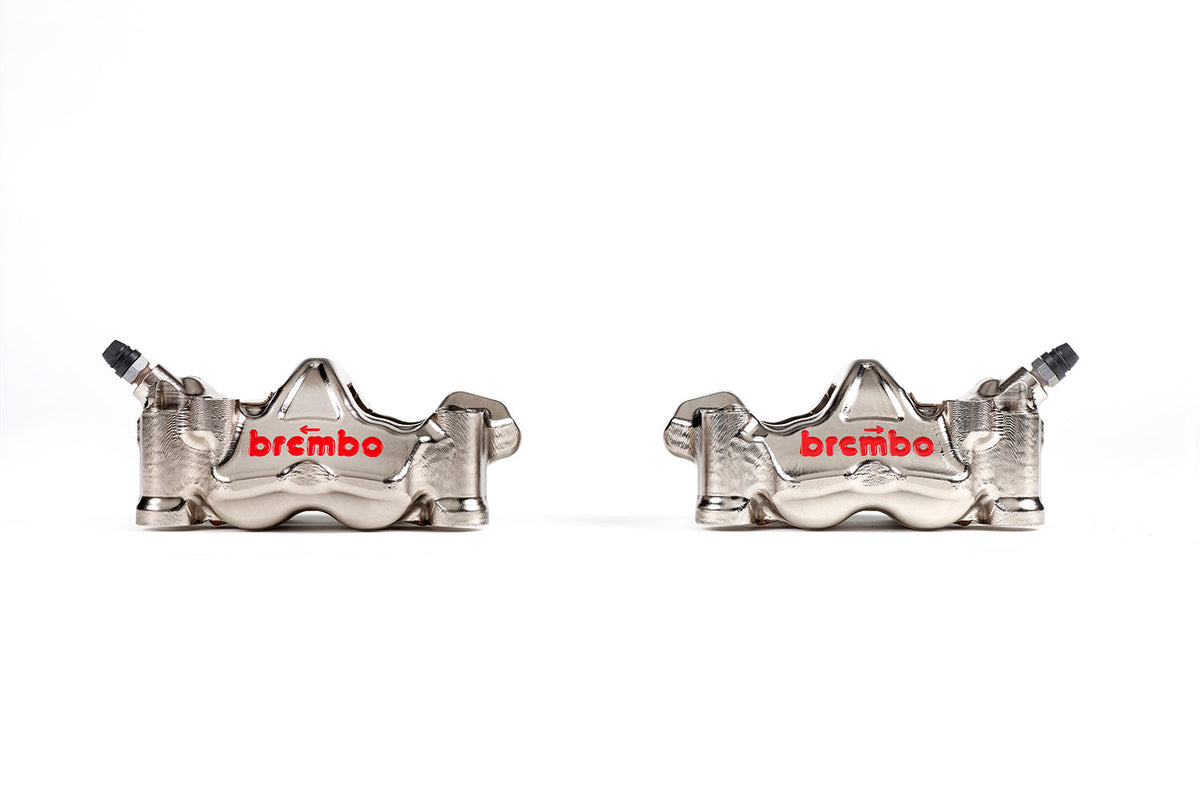

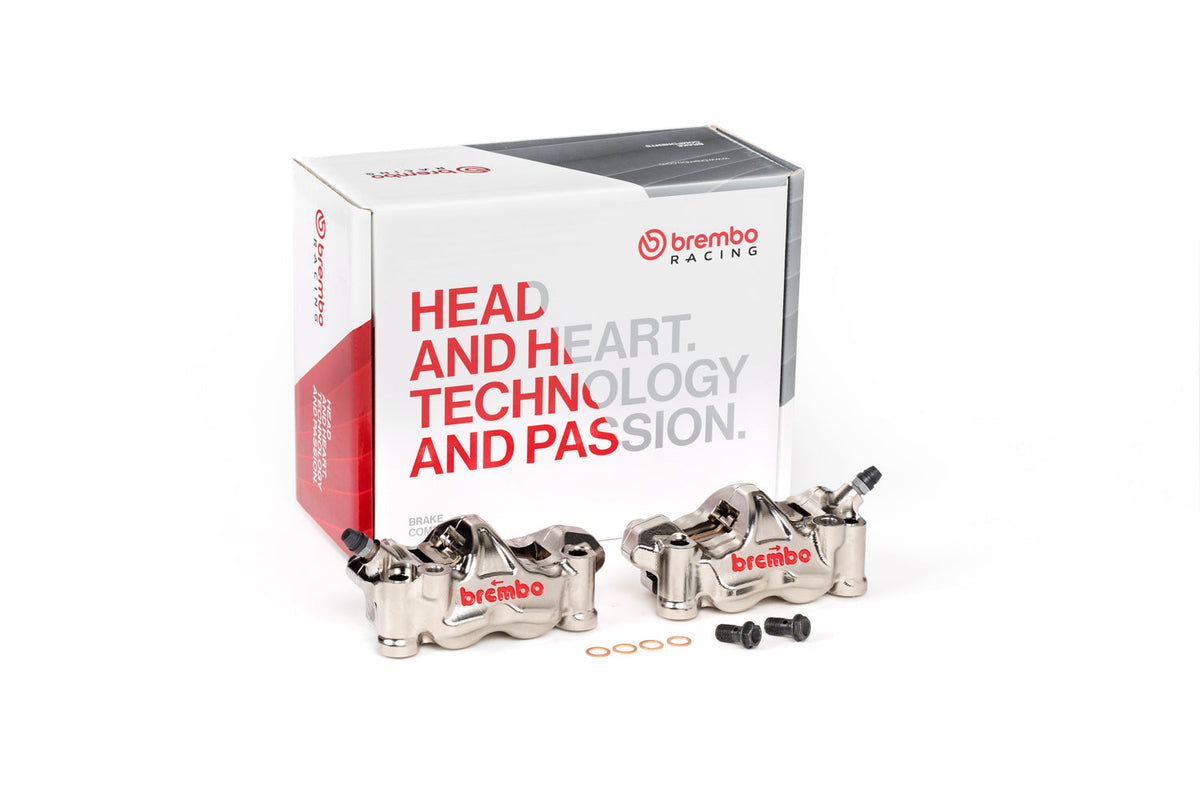

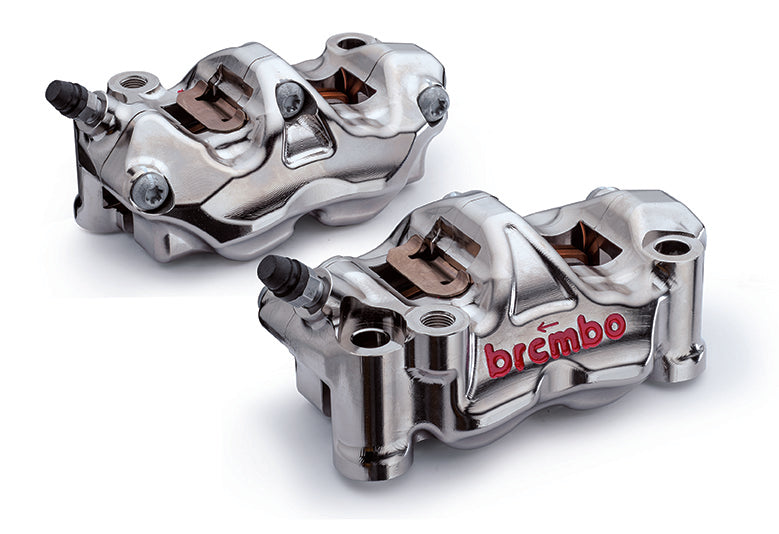

Product views

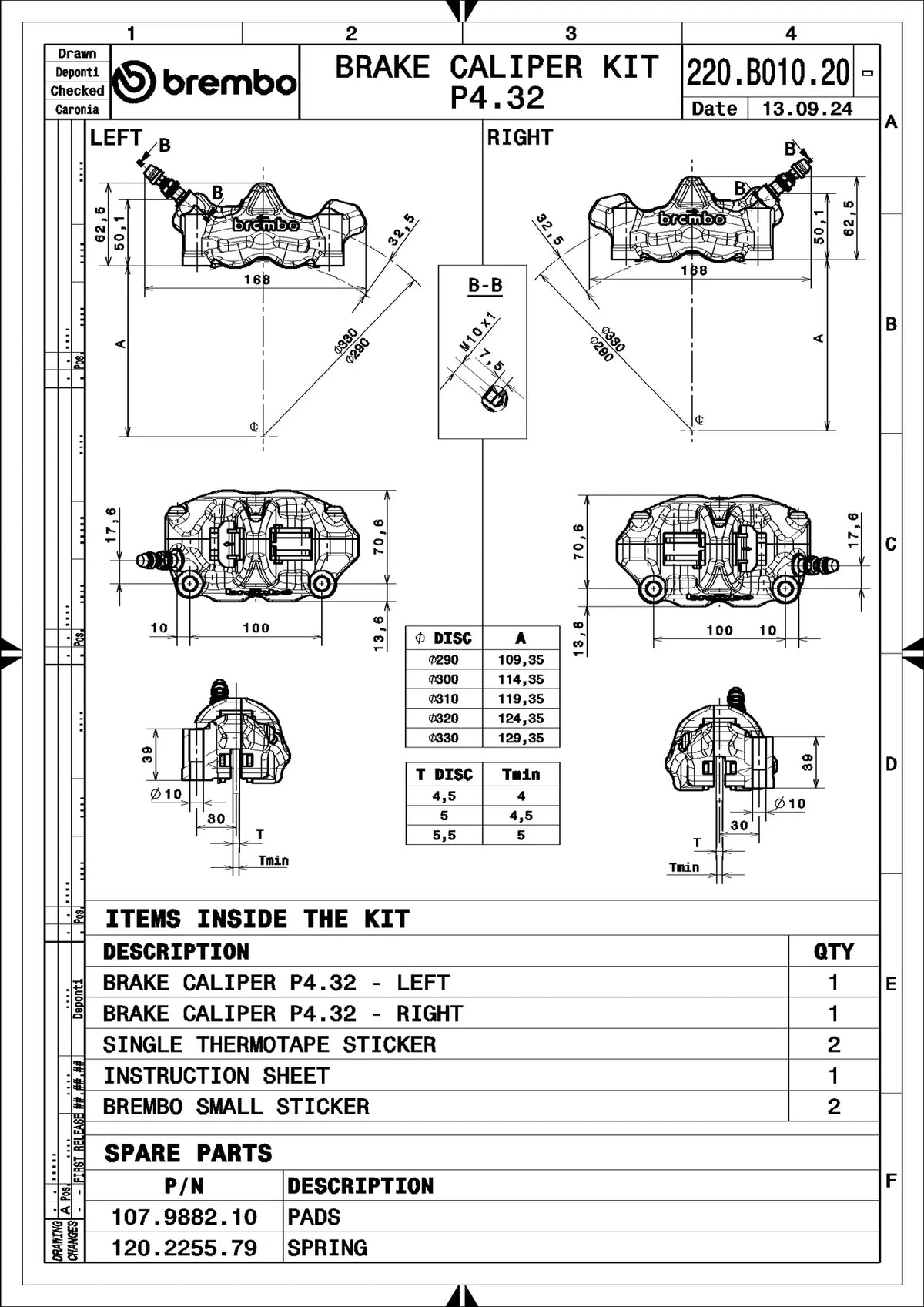

Technical drawing — 220B01020
