Brembo GP4-RX Front Brake Caliper Kit – 220B01130 – 130 mm
Brembo GP4-RX Front Brake Caliper Kit – 220B01130 – 130 mm
At a glance
- Position / quantity: Front / left and right calipers
- Mounting: Radial, 130 mm mounting centers
- Pads: Included
The 130 mm GP4-RX kit is designed for the wider radial mounting arrangement used by selected Yamaha applications. Its CNC-machined aluminum construction, nickel finish and four 32 mm pistons per caliper combine the characteristic GP4-RX appearance with a specification that differs from the 100 mm and 108 mm kits.
Part number: 220B01130. Supplied as one front left-and-right caliper kit. The listed price is for the pair. The selected finish is nickel with red Brembo branding.
Design and equipment
The nickel surface and equal-diameter pistons are characteristic of this GP4-RX specification. Brake pads are included. Both the mounting specification and the supplied caliper configuration are shown in the model-specific technical drawing below. Use that drawing when planning the installation or comparing this kit with another Brembo part number.
Technical specifications
| Brand / model | Brembo GP4-RX |
|---|---|
| Manufacturer part number | 220B01130 |
| Position / quantity | Front / left and right calipers |
| Mounting | Radial, 130 mm mounting centers |
| Body | CNC-machined billet aluminum, two-piece |
| Pistons per caliper | 4 × 32 mm, aluminum |
| Finish | Nickel plated / red logo |
| Pads | Included |
Selected applications
The model-year examples below are drawn from PLOT's listing for this exact part number. This is a selected application list, not a complete vehicle catalogue.
| Motorcycle | Model years |
|---|---|
| Yamaha YZF-R1 | 2007–2011 |
Match the exact model, year and brake configuration before ordering; mounting-center spacing alone does not establish fitment. PLOT also lists the Yamaha MT-01 from 2007 and references compatible 130 mm VMAX configurations, but does not provide a complete year range for those applications here. Confirm the exact vehicle before ordering.
Installation planning
PLOT recommends a 19 mm Brembo radial master cylinder for this kit; have the installer assess the complete hydraulic setup. Verify disc diameter, disc offset, wheel clearance, hose routing, fittings, bolt length and any ABS-specific requirements. Fork conversions and other modifications can change compatibility even when the motorcycle appears in the application list.
Have a qualified motorcycle technician confirm the specification and carry out installation, bleeding and functional checks. Do not assume that mounting adapters, hoses or vehicle-specific hardware are included; plan these separately against the supplied kit documentation.

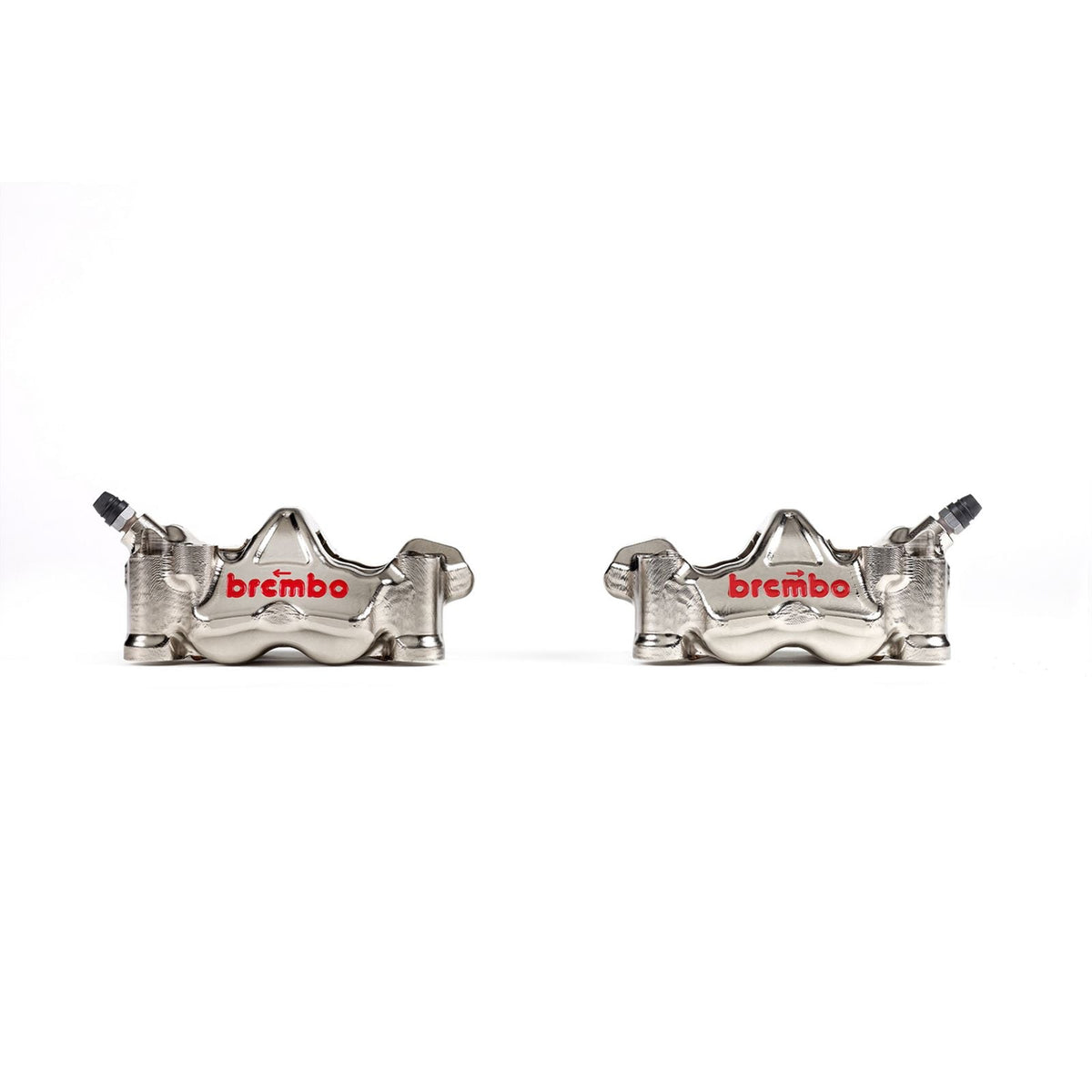

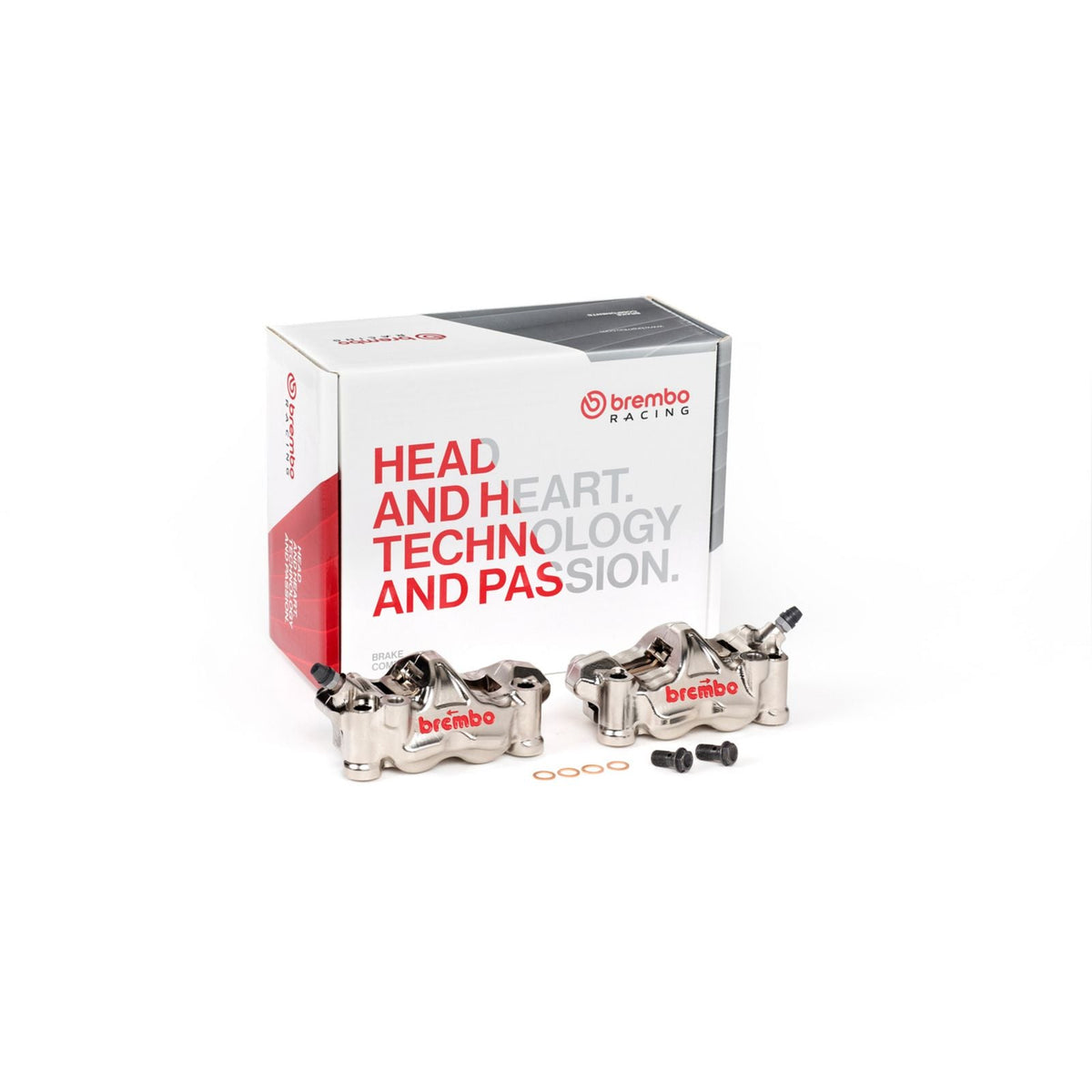

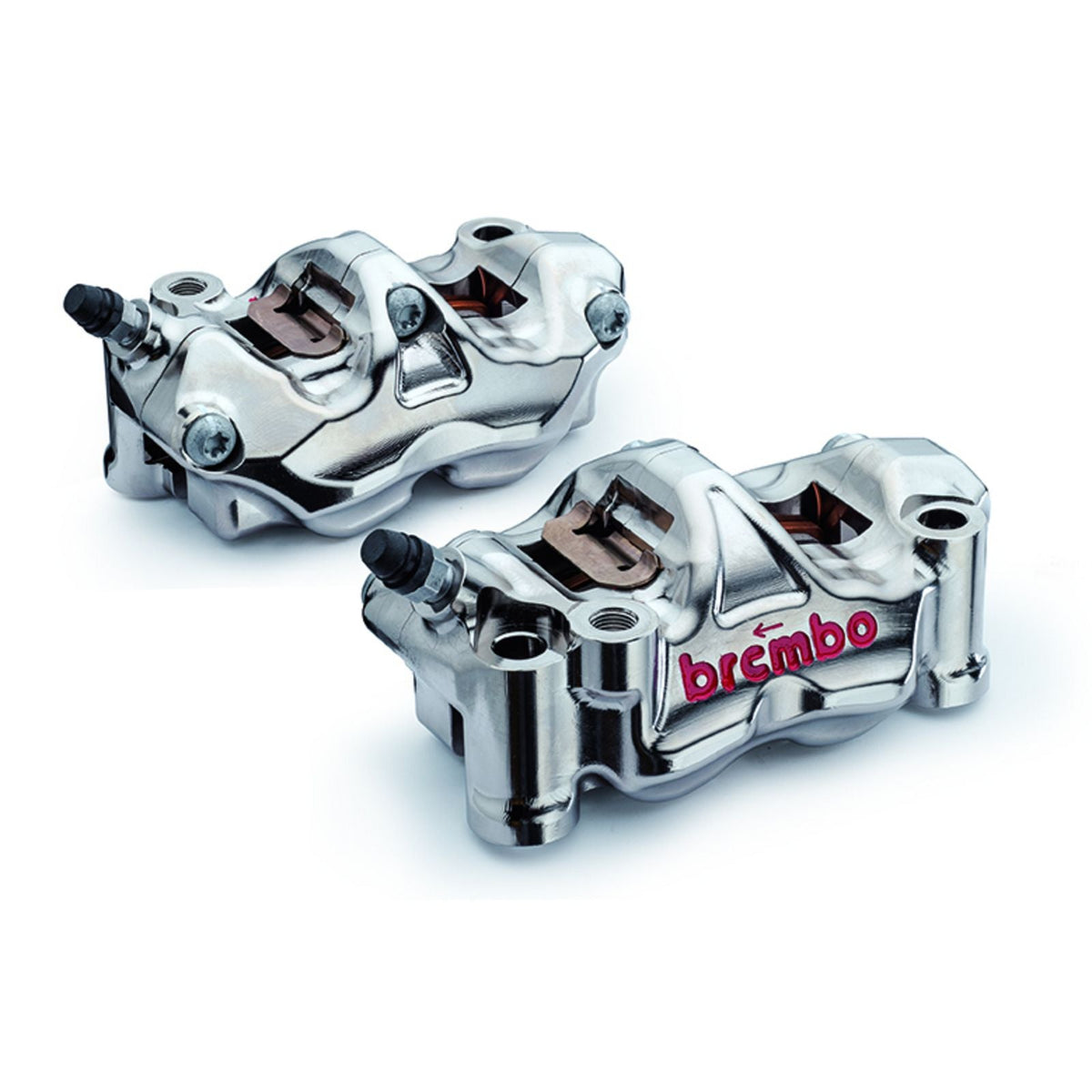

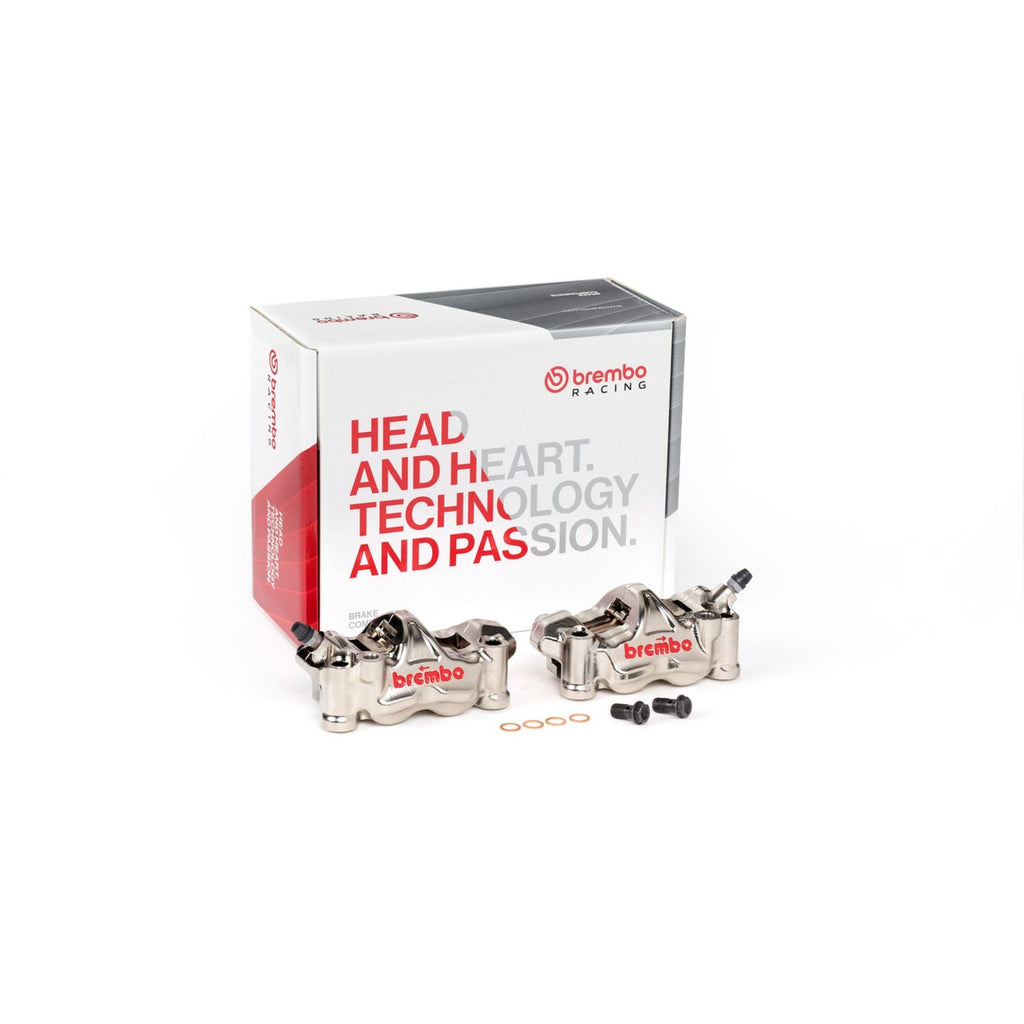

Product views

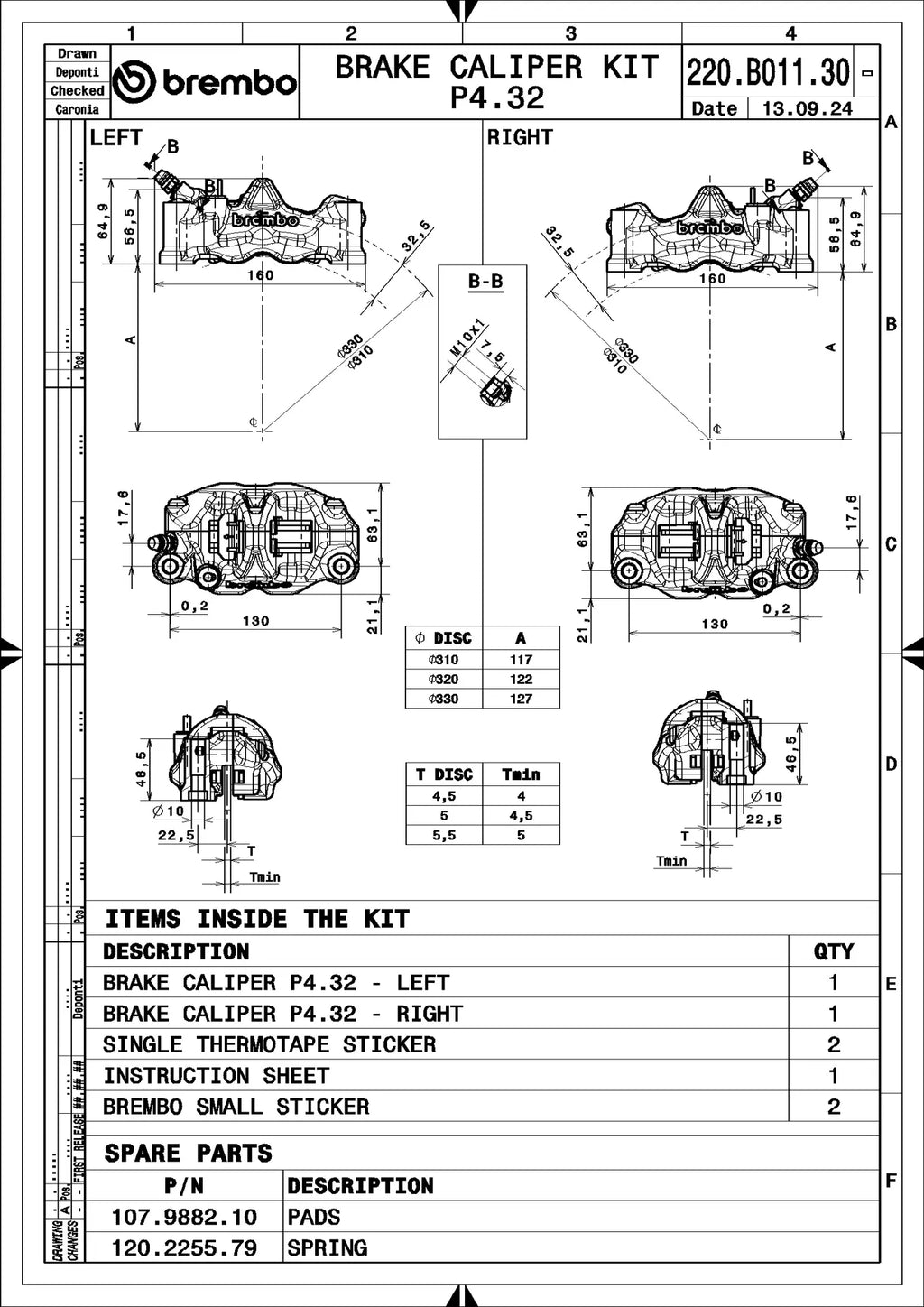

Technical drawing — 220B01130
