Brembo M50 Front Brake Caliper Kit – 220A88510 – 100 mm
Brembo M50 Front Brake Caliper Kit – 220A88510 – 100 mm
At a glance
- Position / quantity: Front / left and right calipers
- Mounting: Radial, 100 mm mounting centers
- Pads: Included
The Brembo M50 combines a compact cast-aluminum monobloc body with four 30 mm pistons per caliper. Its one-piece structure and reinforcing ribs are designed to balance stiffness with low weight, while the hydraulic layout supports controlled lever modulation. The titanium-grey anodized finish and red Brembo lettering give this matched front pair a restrained performance appearance.
Part number: 220A88510. Supplied as one front left-and-right caliper kit. The listed price is for the pair. The selected finish is titanium grey with red Brembo branding.
Design and equipment
The monobloc body brings the piston seats together within a single cast-aluminum structure. Brake pads are included. Both the mounting specification and the supplied caliper configuration are shown in the model-specific technical drawing below. Use that drawing when planning the installation or comparing this kit with another Brembo part number.
Technical specifications
| Brand / model | Brembo M50 |
|---|---|
| Manufacturer part number | 220A88510 |
| Position / quantity | Front / left and right calipers |
| Mounting | Radial, 100 mm mounting centers |
| Body | Cast aluminum monobloc |
| Pistons per caliper | 4 × 30 mm, aluminum |
| Finish | Titanium Grey anodized / red logo |
| Pads | Included |
Selected applications
The model-year examples below are drawn from PLOT's listing for this exact part number. This is a selected application list, not a complete vehicle catalogue.
| Motorcycle | Model years |
|---|---|
| Aprilia RSV1000R | 2004–2008 |
| Aprilia RSV4 | 2009–2015 |
| Ducati 749 — radial-caliper versions | 2003–2006 |
| Ducati Monster 696 | 2008–2010 |
| KTM 950 Supermoto | 2005–2008 |
| KTM 990 Superduke | 2005–2012 |
| Triumph Daytona 675 R | 2011–2012 |
Match the exact model, year and brake configuration before ordering; mounting-center spacing alone does not establish fitment.
Installation planning
PLOT recommends a 17 mm Brembo radial master cylinder for this kit; have the installer assess the complete hydraulic setup. Verify disc diameter, disc offset, wheel clearance, hose routing, fittings, bolt length and any ABS-specific requirements. Fork conversions and other modifications can change compatibility even when the motorcycle appears in the application list.
Have a qualified motorcycle technician confirm the specification and carry out installation, bleeding and functional checks. Do not assume that mounting adapters, hoses or vehicle-specific hardware are included; plan these separately against the supplied kit documentation.

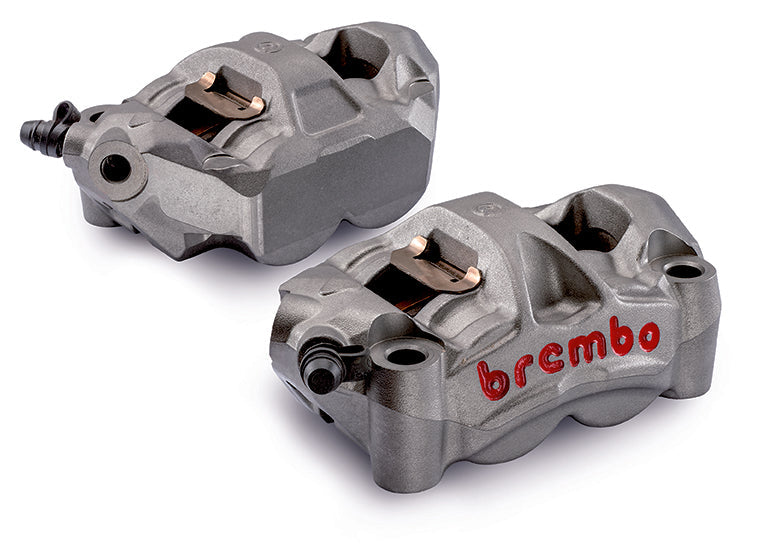

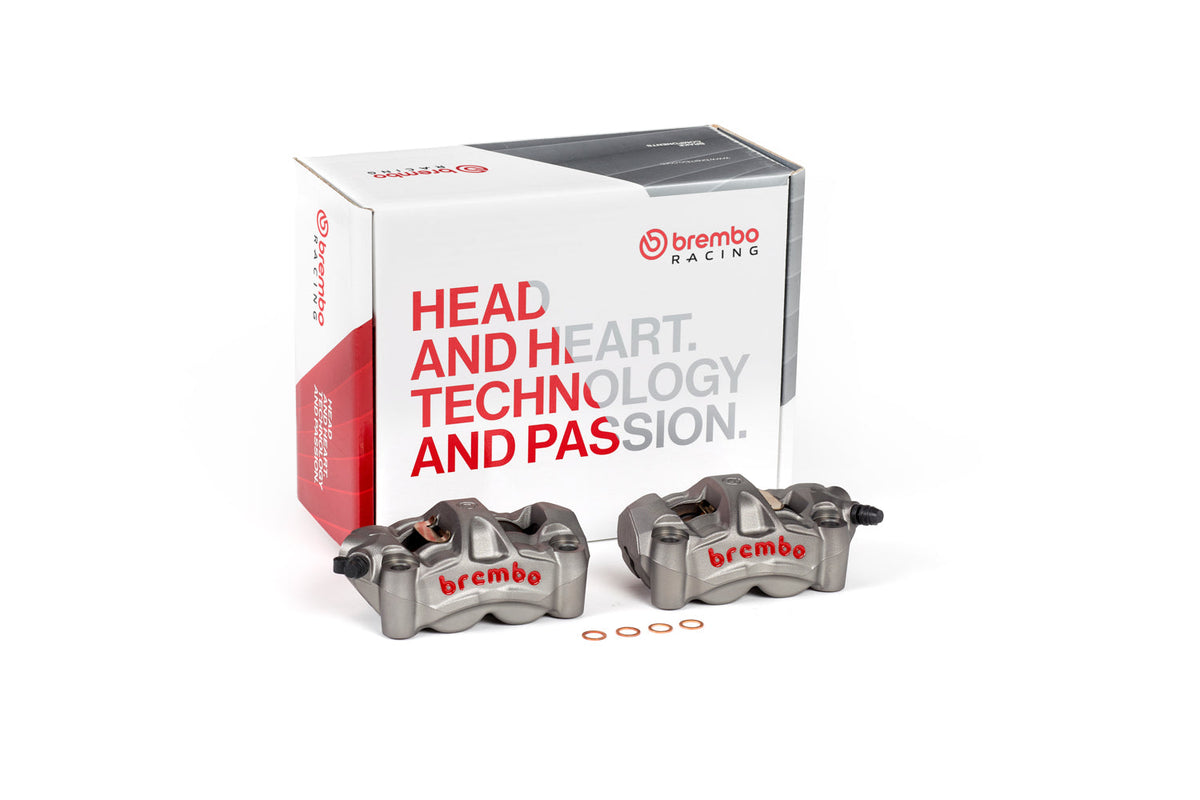

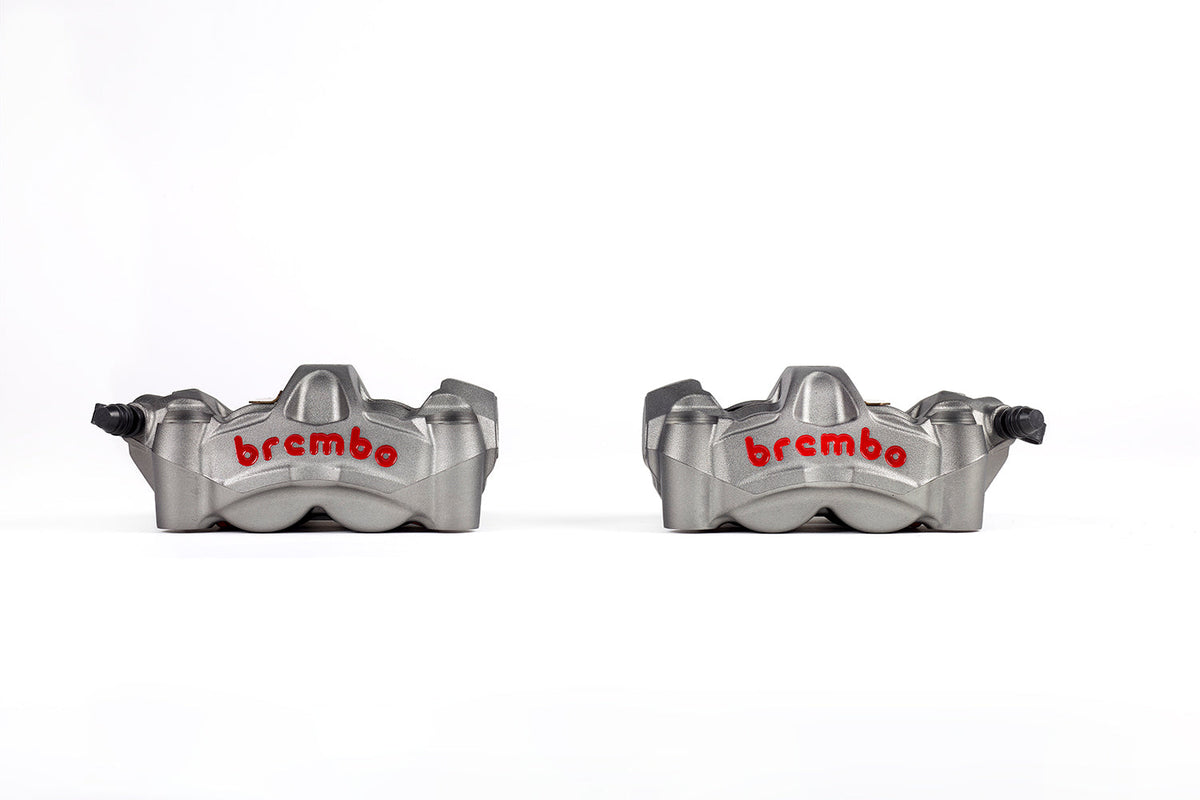

Product views

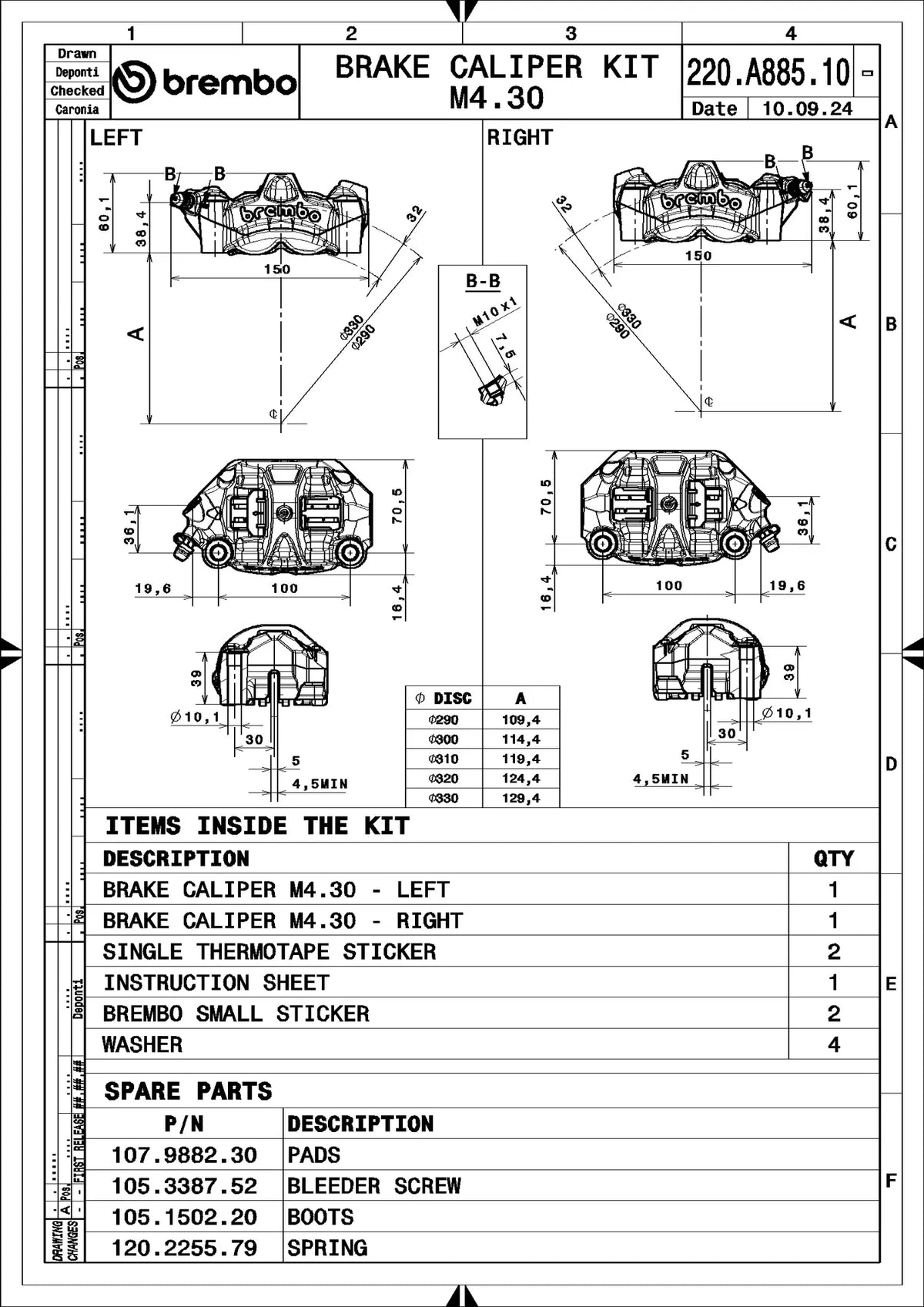

Technical drawing — 220A88510
