Brembo M50 Front Right Brake Caliper – 920A88581 – Titanium Grey
Brembo M50 Front Right Brake Caliper – 920A88581 – Titanium Grey
At a glance
- Position: Front right
- Quantity: 1 caliper
- Radial mounting centres: 100 mm
- Brake pads: Not included

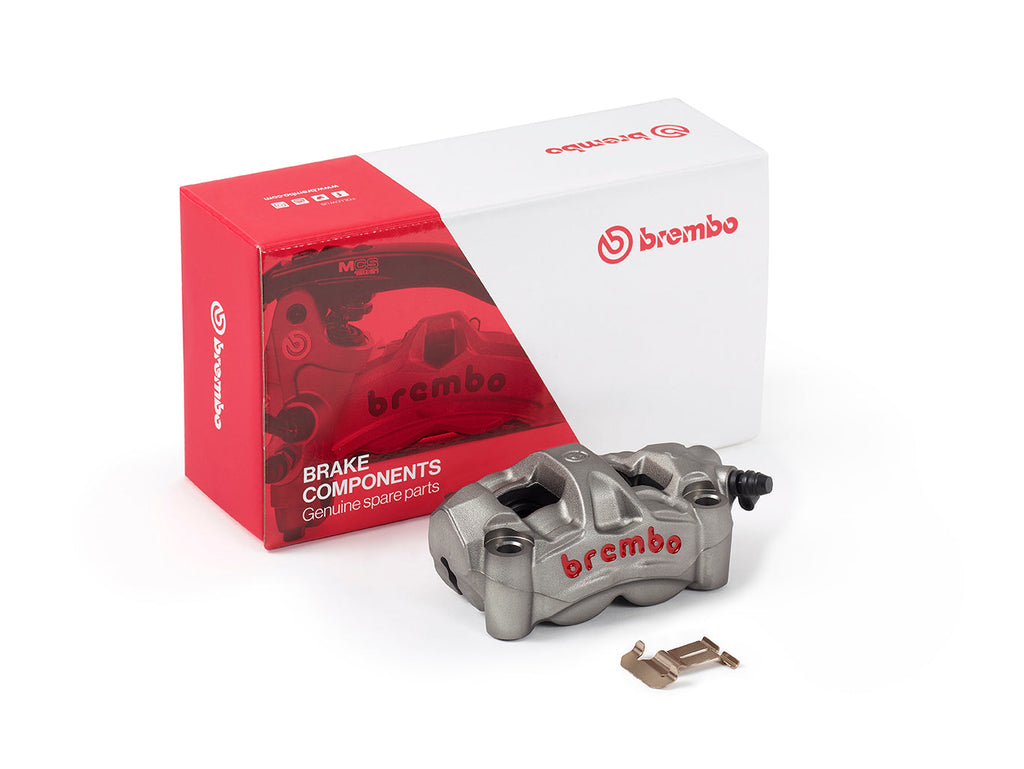

The Brembo M50 920A88581 is a single front right brake caliper in titanium grey. It combines a cast-aluminium monobloc body with four 30 mm aluminium pistons and a 100 mm radial mounting pattern. This listing supplies one caliper only. Brake pads are not included and must be selected separately for the caliper and motorcycle.
Design and features

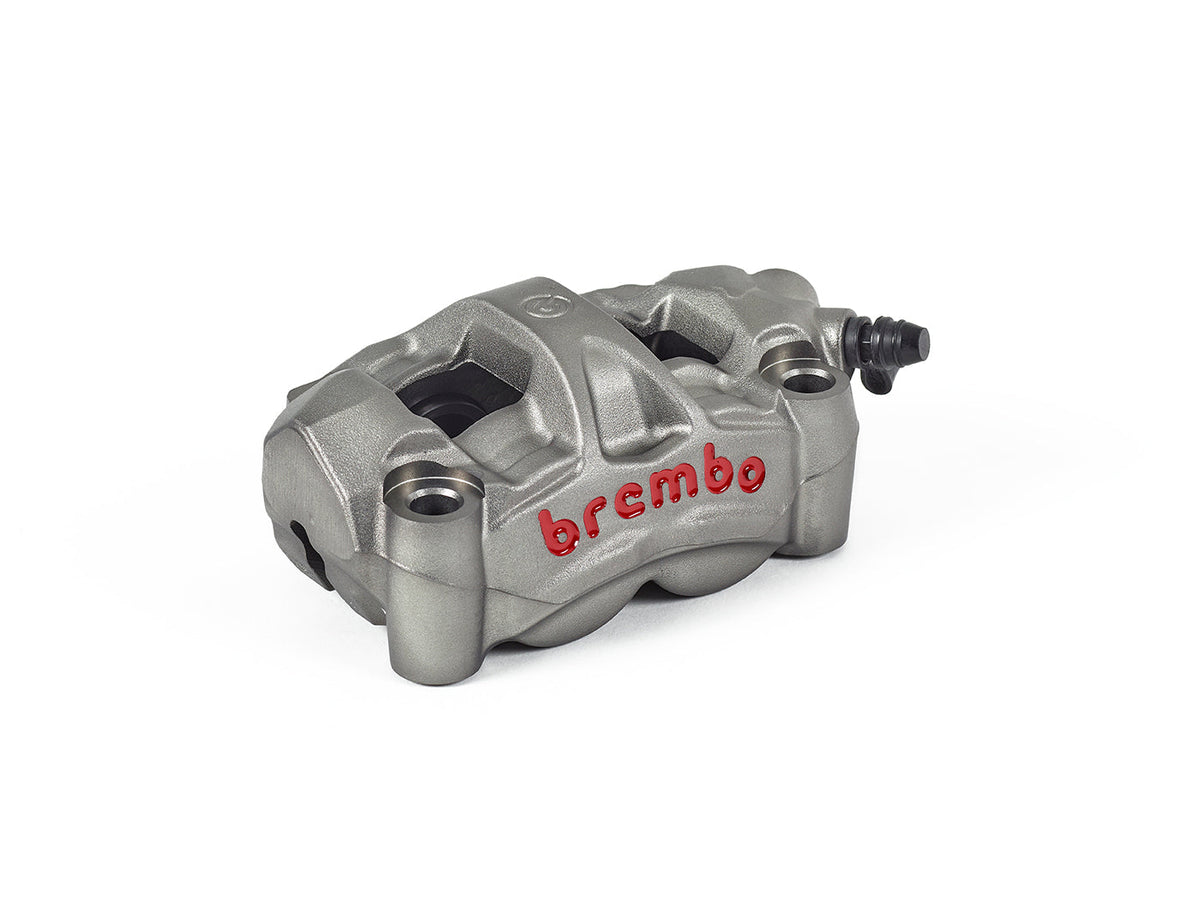

The M50 uses a one-piece body designed to balance structural rigidity and compact dimensions. Its titanium-grey finish is a surface colour: the body and pistons are aluminium, not titanium. The red logo and sculpted housing retain the distinctive M50 appearance. Choosing the correct handed part is essential because the fluid inlet and bleed arrangement must suit the installation.
Technical specifications
| Manufacturer part number | 920A88581 |
|---|---|
| Caliper model | M50 |
| Position | Front right |
| Quantity | 1 caliper |
| Finish | Titanium Grey |
| Body | Cast-aluminium monobloc |
| Pistons per caliper | 4 × 30 mm, aluminium |
| Radial mounting centres | 100 mm |
| Brake pads | Not included |
| Opposite-side part number | 920A88580 (sold separately) |
Vehicle fitment and installation
Verified catalogue example: Ducati Multistrada 1260 S (AC), 2018–2020, front application. This is a selected example, not a complete vehicle list. Confirm the exact model year, trim and original brake equipment against the Brembo catalogue before ordering.
Have a qualified motorcycle technician check disc diameter and thickness, caliper offset, wheel clearance, hose routing, banjo fittings, mounting bolts and any required spacers. Confirm master-cylinder compatibility and ABS requirements for the specific motorcycle. Follow the applicable installation, tightening, bleeding and bedding-in instructions. Installation hardware requirements can differ between applications.
Package and ordering notes

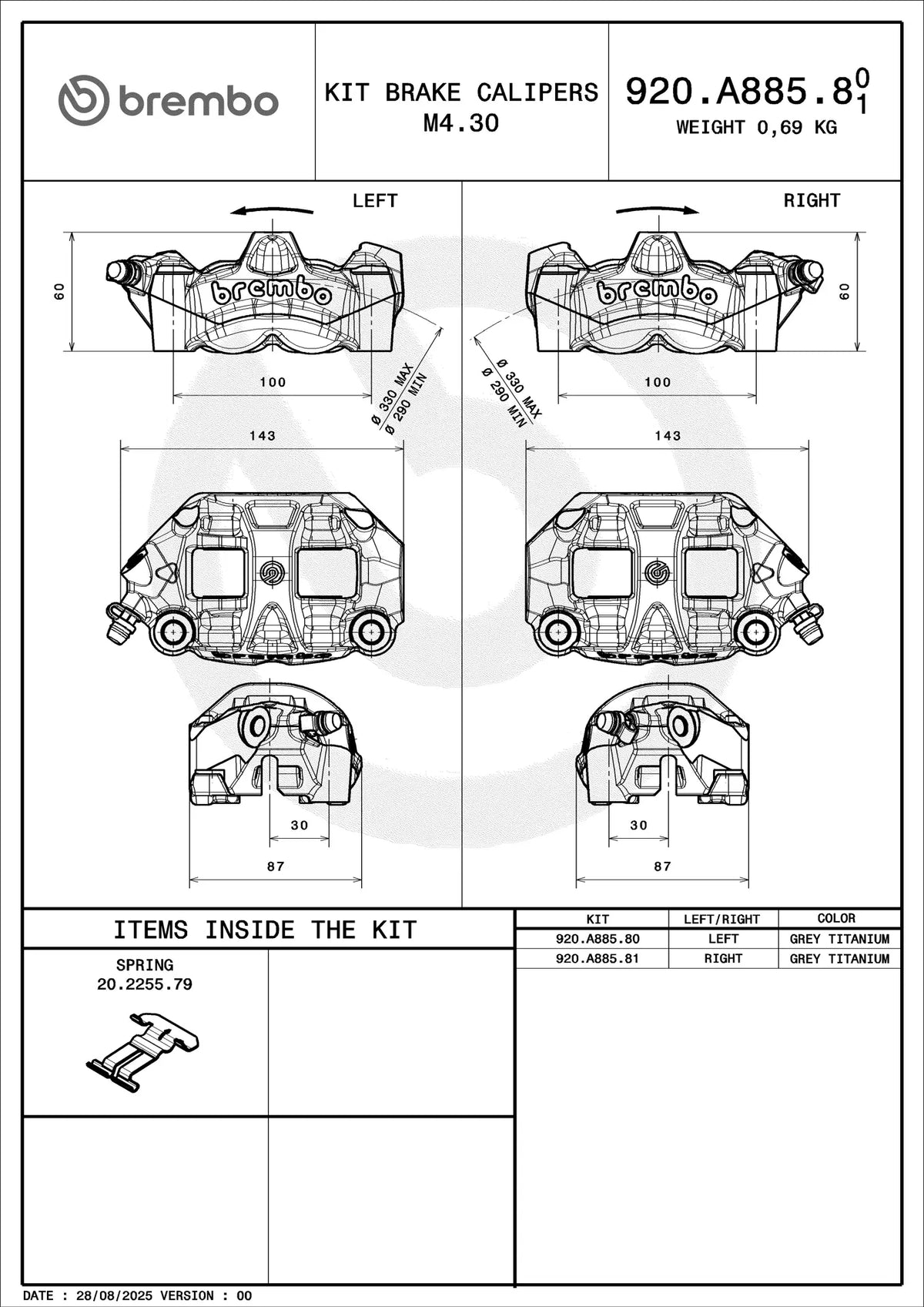

The opposite-side caliper is a separate part number. Check the side from the rider's seated position and match the part number before ordering a replacement. The shared technical drawing shows both sides for identification; it does not mean that two calipers are supplied.
Product details and dimensions
