Brembo Stylema Front Brake Caliper Pair – 220D02070 – Black
Brembo Stylema Front Brake Caliper Pair – 220D02070 – Black
At a glance
- Position: Front, left and right
- Quantity: 1 pair / 2 calipers
- Radial mounting centres: 100 mm
- Brake pads: Included

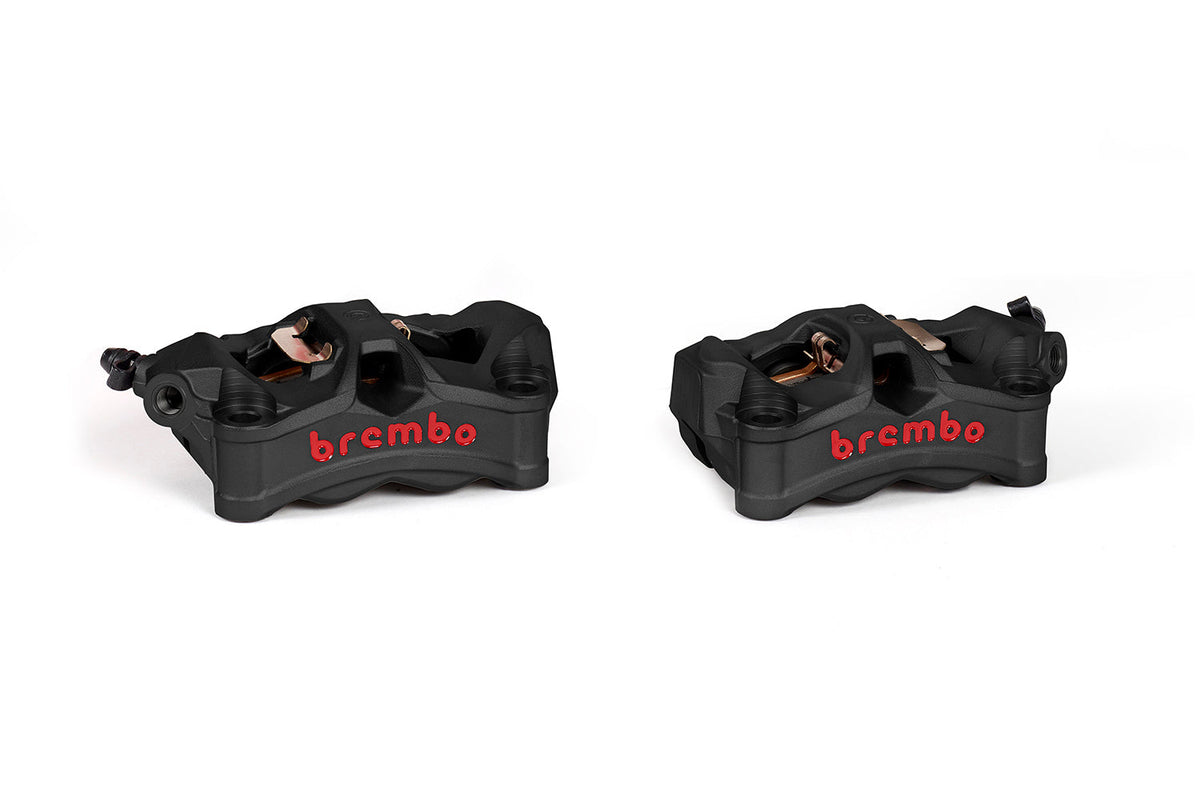

The Brembo Stylema 220D02070 is a matched pair of black front brake calipers with 100 mm radial mounting. Each compact cast-aluminium monobloc body houses four 30 mm aluminium pistons. The kit provides both left and right calipers, and Brembo's product catalogue specifies that brake pads are included. Its black finish and red Brembo lettering give both sides of the front wheel a coordinated appearance.
Design and features
Stylema's compact body and central opening are designed to encourage airflow around the braking components. The one-piece construction avoids a joint between separate caliper halves, while the sculpted exterior keeps the package compact. The caliper must be matched to the motorcycle's hydraulic system and disc geometry; mounting-hole spacing alone does not establish compatibility.
Technical specifications
| Manufacturer part number | 220D02070 |
|---|---|
| Caliper model | Stylema |
| Position | Front, left and right |
| Quantity | 1 pair / 2 calipers |
| Finish | Black |
| Body | Cast-aluminium monobloc |
| Pistons per caliper | 4 × 30 mm, aluminium |
| Radial mounting centres | 100 mm |
| Brake pads | Included |
Vehicle fitment and installation
Verified catalogue example: Ducati Multistrada 1260 S (AC), 2018–2020, front application. This is a selected example, not a complete vehicle list. Confirm the exact model year, trim and original brake equipment against the Brembo catalogue before ordering.
Have a qualified motorcycle technician check disc diameter and thickness, caliper offset, wheel clearance, hose routing, banjo fittings, mounting bolts and any required spacers. Confirm master-cylinder compatibility and ABS requirements for the specific motorcycle. Follow the applicable installation, tightening, bleeding and bedding-in instructions. Installation hardware requirements can differ between applications.
Package and ordering notes

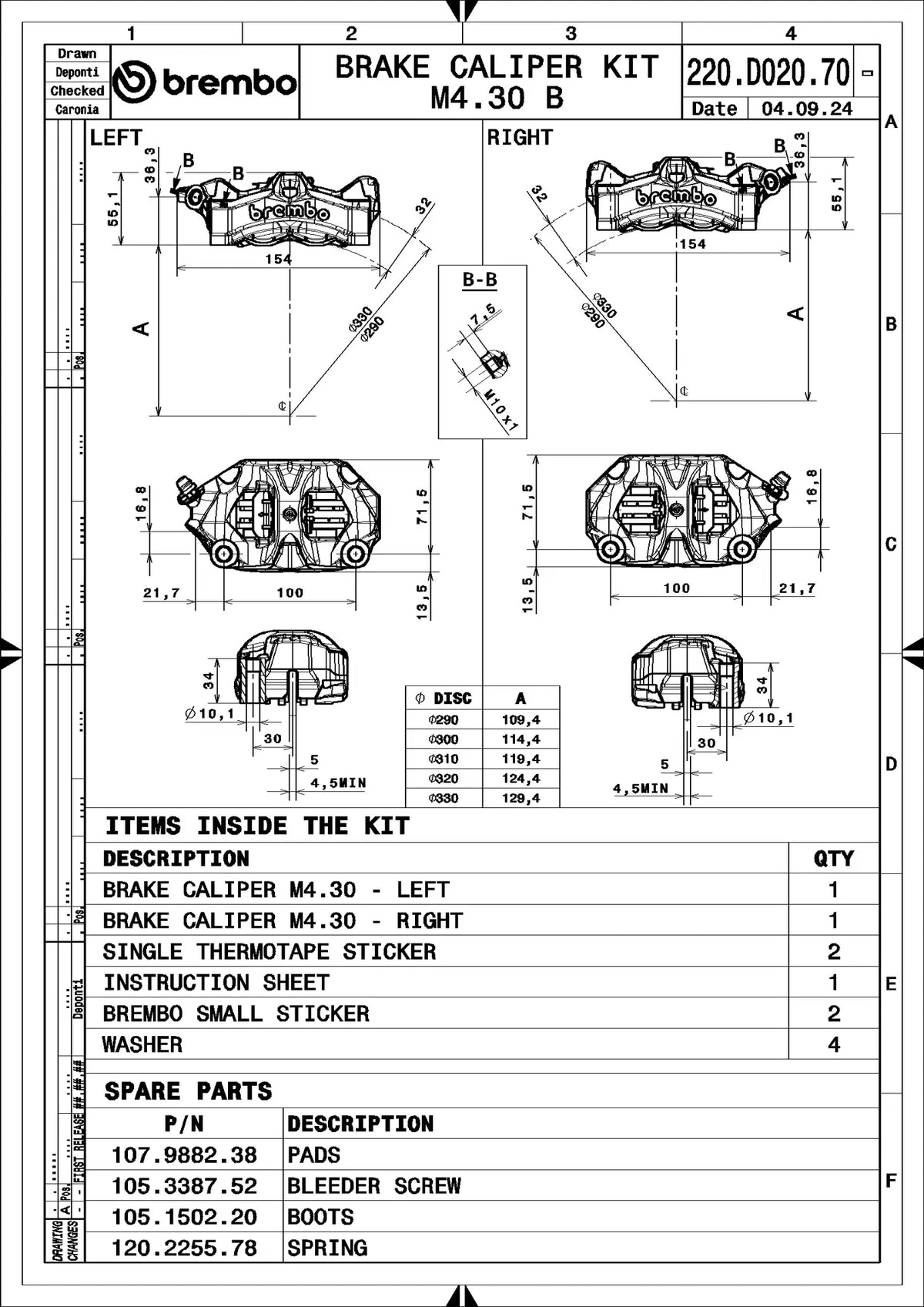

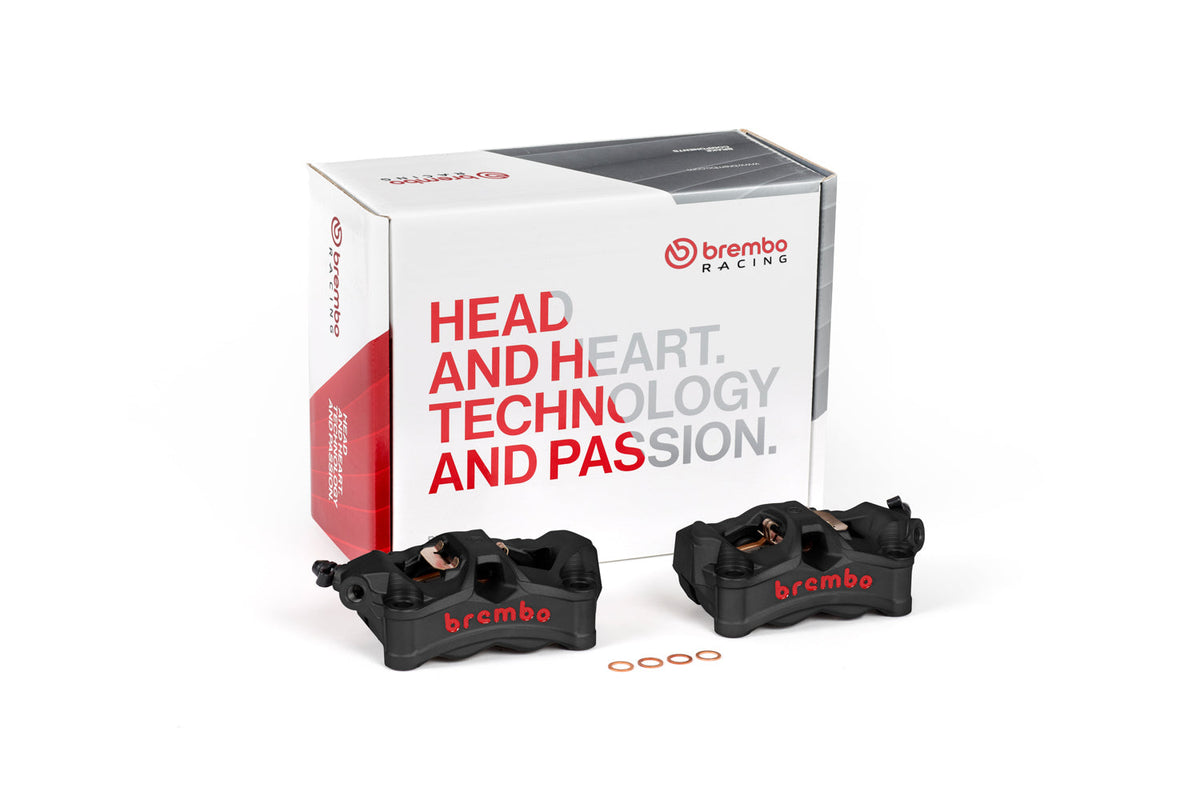

The kit drawing lists left and right calipers, four washers, thermal indicator stickers, instructions and Brembo stickers. Check the drawing for required mounting dimensions and any application-specific fittings.
Product details and dimensions
