Brembo Stylema Front Left Brake Caliper – 920D02092 – Black
Brembo Stylema Front Left Brake Caliper – 920D02092 – Black
At a glance
- Position: Front left
- Quantity: 1 caliper
- Radial mounting centres: 100 mm
- Brake pads: Not included

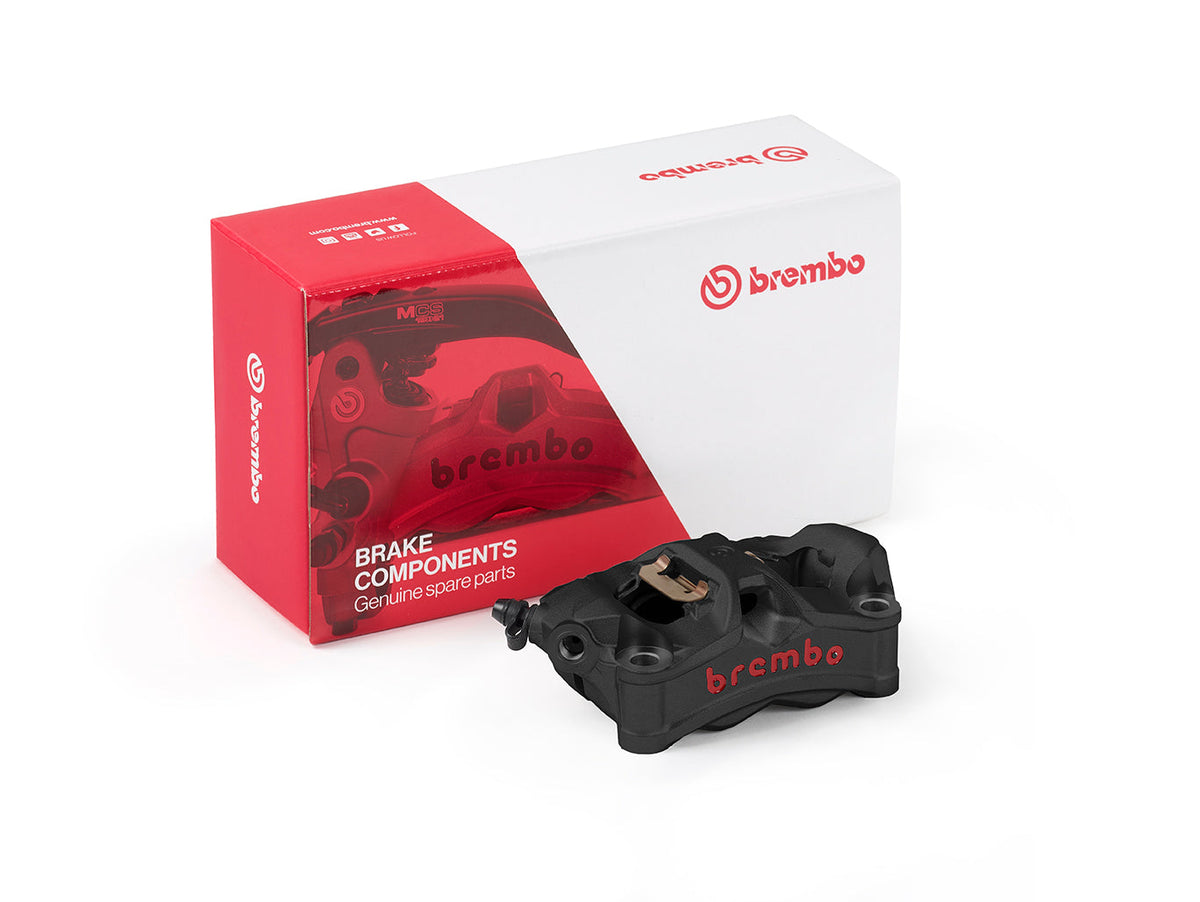

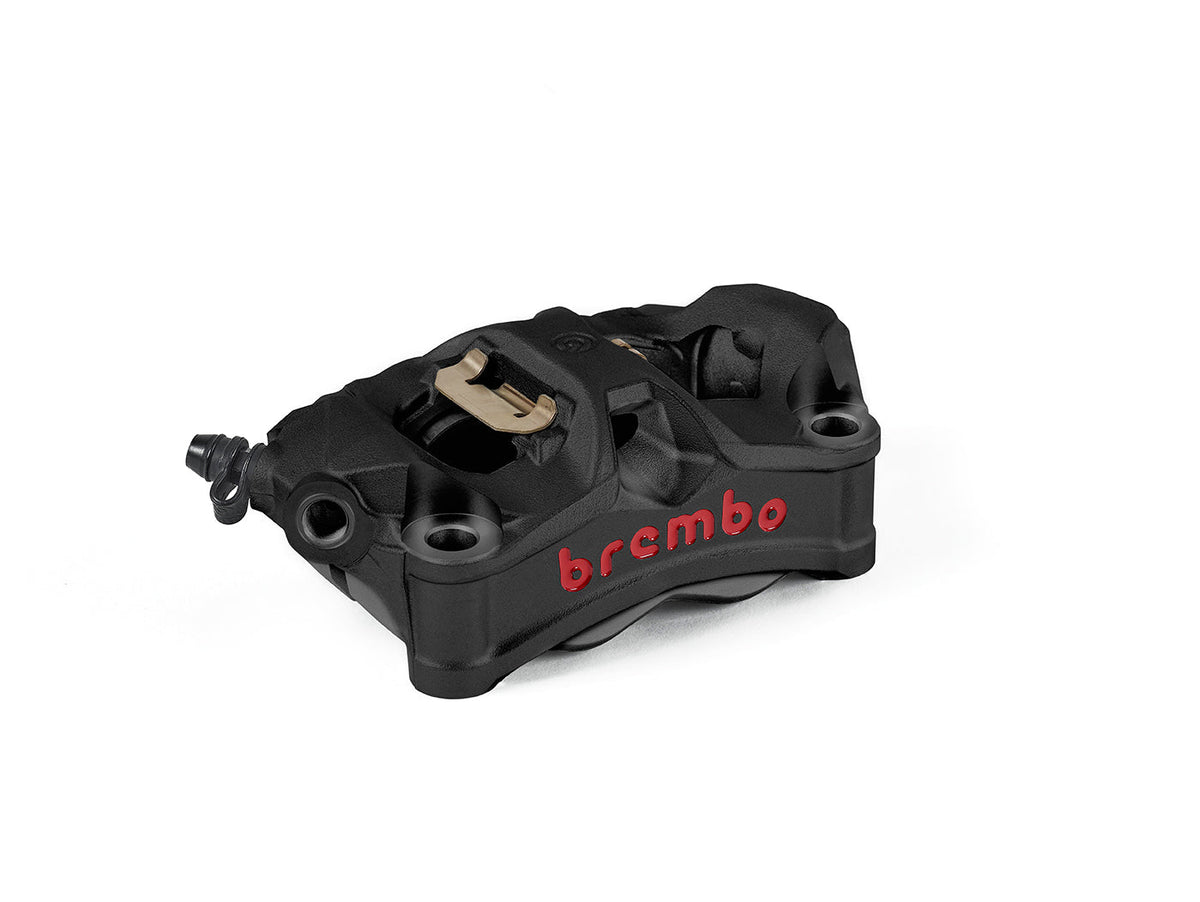

The Brembo Stylema 920D02092 is a single front left brake caliper in black. It combines a cast-aluminium monobloc body with four 30 mm aluminium pistons and a 100 mm radial mounting pattern. This listing supplies one caliper only. Brake pads are not included and must be selected separately for the caliper and motorcycle.
Design and features
Stylema's compact body and central opening are designed to encourage airflow around the braking components. The one-piece construction avoids a joint between separate caliper halves, while the sculpted exterior keeps the package compact. The caliper must be matched to the motorcycle's hydraulic system and disc geometry; mounting-hole spacing alone does not establish compatibility.
Technical specifications
| Manufacturer part number | 920D02092 |
|---|---|
| Caliper model | Stylema |
| Position | Front left |
| Quantity | 1 caliper |
| Finish | Black |
| Body | Cast-aluminium monobloc |
| Pistons per caliper | 4 × 30 mm, aluminium |
| Radial mounting centres | 100 mm |
| Brake pads | Not included |
| Opposite-side part number | 920D02093 (sold separately) |
Vehicle fitment and installation
Verified catalogue example: Ducati Multistrada 1260 S (AC), 2018–2020, front application. This is a selected example, not a complete vehicle list. Confirm the exact model year, trim and original brake equipment against the Brembo catalogue before ordering.
Have a qualified motorcycle technician check disc diameter and thickness, caliper offset, wheel clearance, hose routing, banjo fittings, mounting bolts and any required spacers. Confirm master-cylinder compatibility and ABS requirements for the specific motorcycle. Follow the applicable installation, tightening, bleeding and bedding-in instructions. Installation hardware requirements can differ between applications.
Package and ordering notes
The opposite-side caliper is a separate part number. Check the side from the rider's seated position and match the part number before ordering a replacement. The shared technical drawing shows both sides for identification; it does not mean that two calipers are supplied.
Product details and dimensions
