Brembo Stylema Front Brake Caliper Kit – 220D02010 – 100 mm
Brembo Stylema Front Brake Caliper Kit – 220D02010 – 100 mm
At a glance
- Position / quantity: Front / left and right calipers
- Mounting: Radial, 100 mm mounting centers
- Pads: Included
Brembo Stylema combines compact monobloc construction with an open, sculpted body that encourages airflow around the pads and piston areas. Its central bridge opening and reduced body volume form part of the cooling-focused design. This titanium-grey kit uses four 30 mm pistons per caliper and 100 mm radial mounting, with red Brembo lettering on both front calipers.
Part number: 220D02010. Supplied as one front left-and-right caliper kit. The listed price is for the pair. The selected finish is titanium grey with red Brembo branding.
Design and equipment
The open bridge and airflow passages distinguish Stylema from the M50 design. Brake pads are included. Both the mounting specification and the supplied caliper configuration are shown in the model-specific technical drawing below. Use that drawing when planning the installation or comparing this kit with another Brembo part number.
Technical specifications
| Brand / model | Brembo Stylema |
|---|---|
| Manufacturer part number | 220D02010 |
| Position / quantity | Front / left and right calipers |
| Mounting | Radial, 100 mm mounting centers |
| Body | Cast aluminum monobloc |
| Pistons per caliper | 4 × 30 mm, aluminum |
| Finish | Titanium Grey anodized / red logo |
| Pads | Included |
Selected applications
The model-year examples below are drawn from PLOT's listing for this exact part number. This is a selected application list, not a complete vehicle catalogue.
| Motorcycle | Model years |
|---|---|
| Aprilia RSV1000R | 2004–2008 |
| Aprilia RSV1000R Factory | 2004–2007 |
| Aprilia RSV4 | 2009–2015 |
| Aprilia Tuono R | 2006–2010 |
| Ducati 749 — radial-caliper versions | 2003–2006 |
| Ducati Monster 696 | 2008–2010 |
| Triumph Daytona 675 R | 2011–2012 |
Match the exact model, year and brake configuration before ordering; mounting-center spacing alone does not establish fitment.
Installation planning
PLOT recommends a 17 mm Brembo radial master cylinder for this kit; have the installer assess the complete hydraulic setup. Verify disc diameter, disc offset, wheel clearance, hose routing, fittings, bolt length and any ABS-specific requirements. Fork conversions and other modifications can change compatibility even when the motorcycle appears in the application list.
Have a qualified motorcycle technician confirm the specification and carry out installation, bleeding and functional checks. Do not assume that mounting adapters, hoses or vehicle-specific hardware are included; plan these separately against the supplied kit documentation.

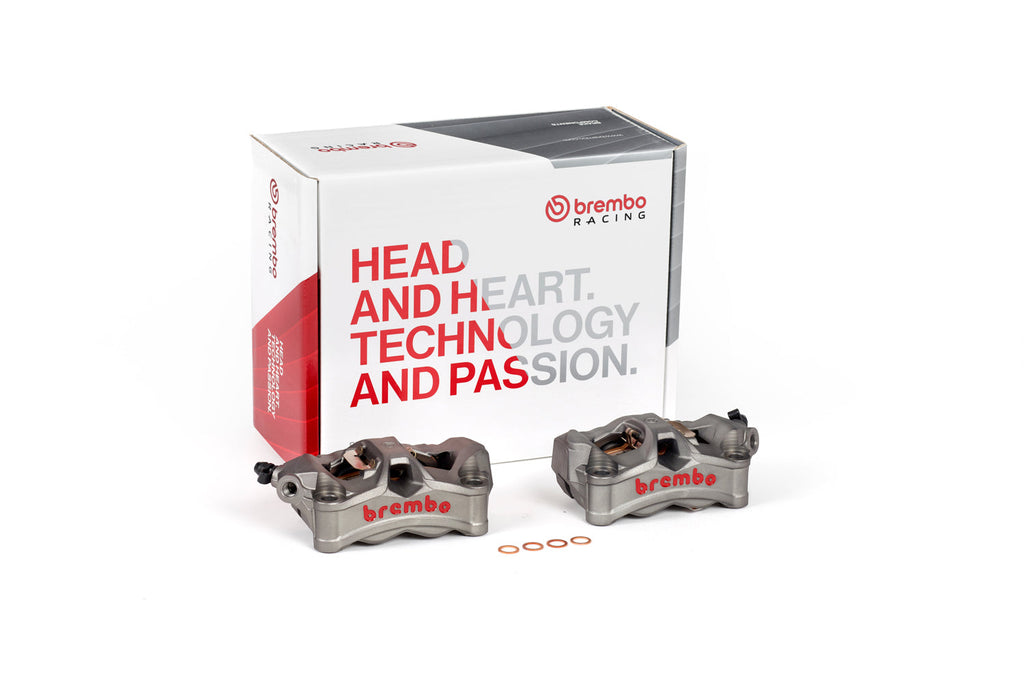

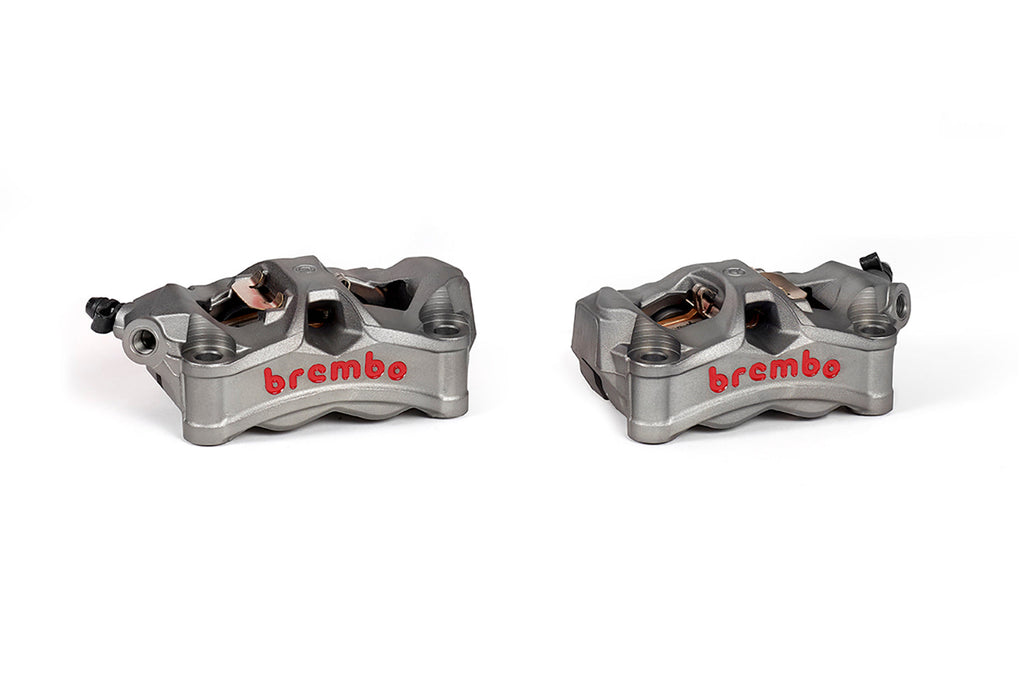

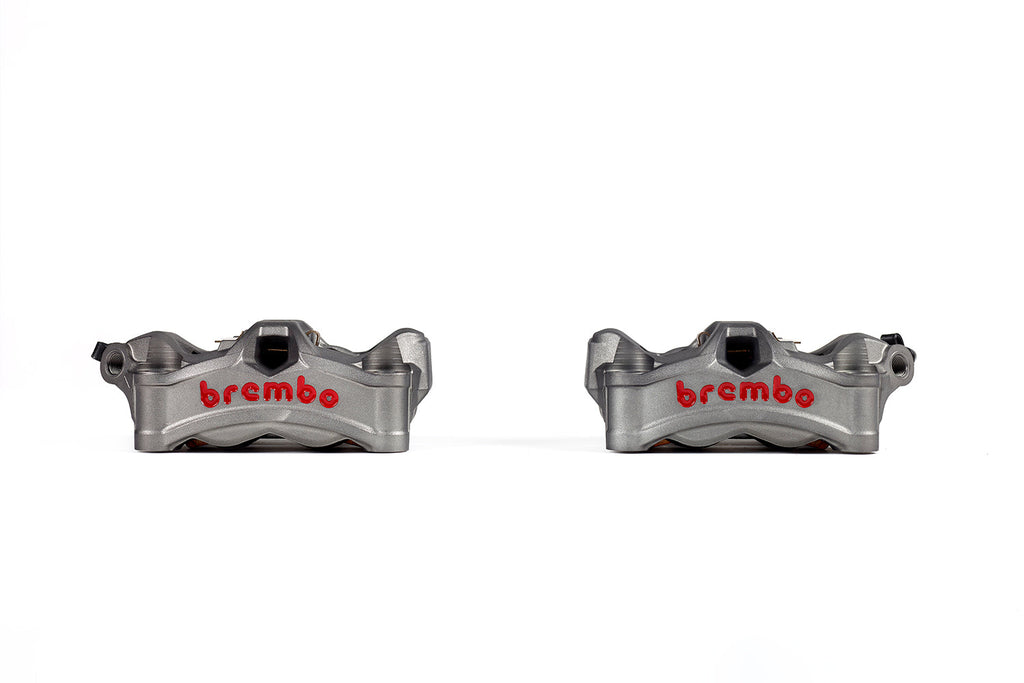

Product views

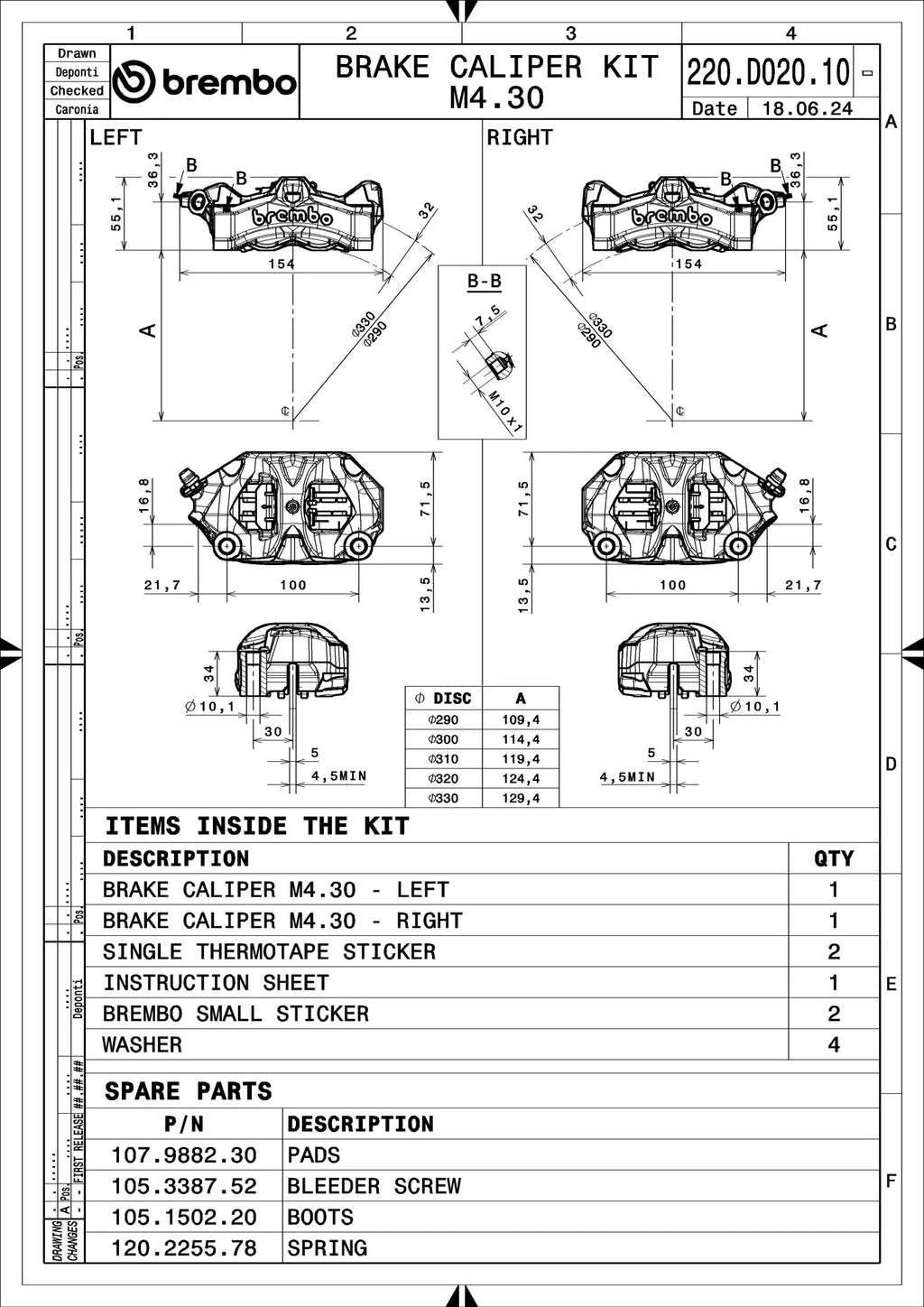

Technical drawing — 220D02010
